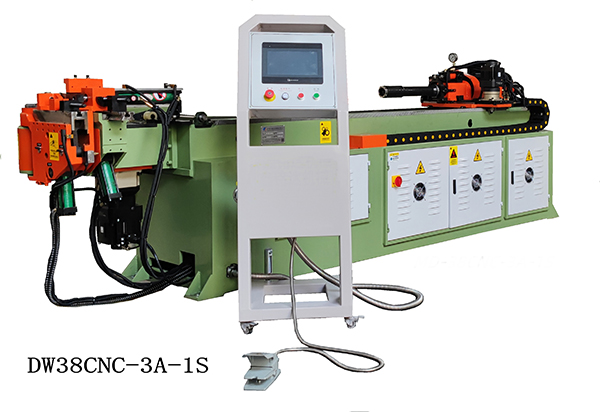

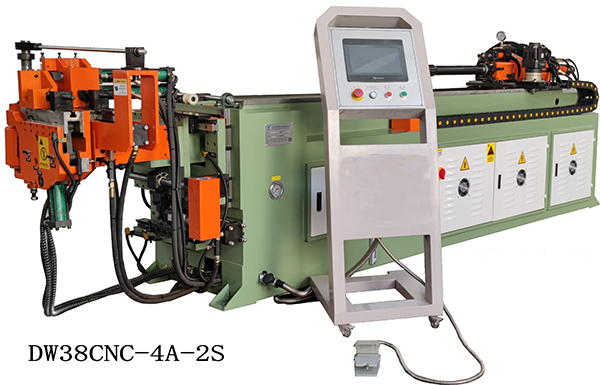

Key Specifications | DW38CNC | Notes | |
maximum bending diameter × wall thickness | Φ38mm × 2mm | 1. Minimum bending radius according to pipe diameter | |
maximum bending radius | R180mm | ||
minimum bend radius | R15mm | ||
maximum bending angle | 190 ° | ||
maximum feed length | 2500mm | ||
Feeding | direct- pinch | ||
pace of work | bending speed | Max 85 ° /s | |
Rotary speed | Max 200 ° /s | ||
feeding rate | Max 1000mm /s | ||
working precision | bending precision | ± 0.1 ° | |
Rotary precision | ± 0.1 ° | ||
feeding accuracy | ± 0.1mm | ||
data input | 1. coordinates (X. Y. Z) | ||
bending mode | 1. servo pipe: 1kw (axis above) | ||
Rotary servo motor power | 750w | ||
feeding servo motor power | 1kw | ||
elbow pipe to allow the number of | 1. 12 | ||
parts store a few | 1. 330 | ||
hydraulic motor power | 5.5kw | ||
system pressure | 12 Mpa | ||
machine size | 3800 x 760 x 1200mm | ||
Weight | 13500kg | ||
